What Size Are Slide Rail Shoring?.
Slide Rail Shoring: Size Matters
Slide rail shoring is a type of trench support system that is used to prevent the collapse of excavations. It is a popular choice for excavations that are deep or narrow, as it allows for more working space than other types of shoring systems.
Slide rail shoring systems are typically composed of three main components:
-
Slide Rail Panels: These are the vertical panels that are placed along the sides of the excavation. They are typically made of steel or aluminum and are available in a variety of heights and lengths.
[Image of slide rail panels] -
Slide Rail Spreader Posts: These are the horizontal posts that are placed at intervals along the slide rail panels. They provide the support that prevents the panels from collapsing.
[Image of slide rail spreader posts] -
Corner Rails: These are the pieces that are used to connect the slide rail panels at right angles. They ensure that the system is rigid and stable.
[Image of corner rails]

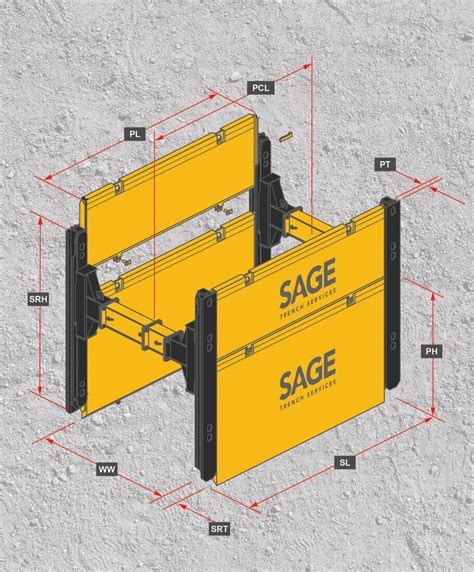

The size of slide rail shoring system that is required will vary depending on the depth and width of the excavation. However, standard sizes are available for most applications.
- Height: Slide rail panels are typically available in heights of 4', 6', 8', and 10'.
- Length: Slide rail panels are typically available in lengths of 16', 20', 24', and 32'.
In addition to the standard sizes, custom sizes can be ordered to fit specific job site requirements.
When selecting a slide rail shoring system, it is important to consider the following factors:
- Depth of the excavation: The deeper the excavation, the taller the slide rail panels will need to be.
- Width of the excavation: The wider the excavation, the longer the slide rail panels will need to be.
- Type of soil: The type of soil will affect the load that the system must support.
- Required working space: The slide rail system should provide enough working space for workers to safely perform their tasks.
Excavations that are deep or narrow are particularly at risk of collapse, and slide rail shoring is an essential safety measure for these projects. By selecting the correct size of slide rail shoring system, contractors can ensure that their workers are protected from the hazards of excavation work.
Benefits of Slide Rail Shoring
There are several benefits to using slide rail shoring, including:
- Increased working space: Slide rail shoring systems allow for more working space than other types of shoring systems, such as trench shields.
- Ease of installation: Slide rail shoring systems are relatively easy to install, even for workers who are not familiar with shoring systems.
- Versatility: Slide rail shoring systems can be used for a wide variety of excavation projects, including deep, narrow, and complex excavations.
Safety Considerations
When using slide rail shoring, it is important to follow all safety precautions to protect workers from injury. This includes:
- Proper training: All workers who are involved in the installation and operation of the slide rail shoring system must be properly trained.
- Regular inspection: The slide rail shoring system should be inspected regularly to ensure that it is in good condition.
- Use of safety equipment: Workers should always wear the appropriate safety equipment, such as hard hats, safety glasses, and steel-toed boots.
By following these safety precautions, contractors can help to prevent accidents and ensure the safety of their workers.
Conclusion
Slide rail shoring is a versatile and effective tool for preventing the collapse of excavations. By selecting the correct size of system and following all safety precautions, contractors can help to protect their workers from injury and ensure the successful completion of their projects.
.
